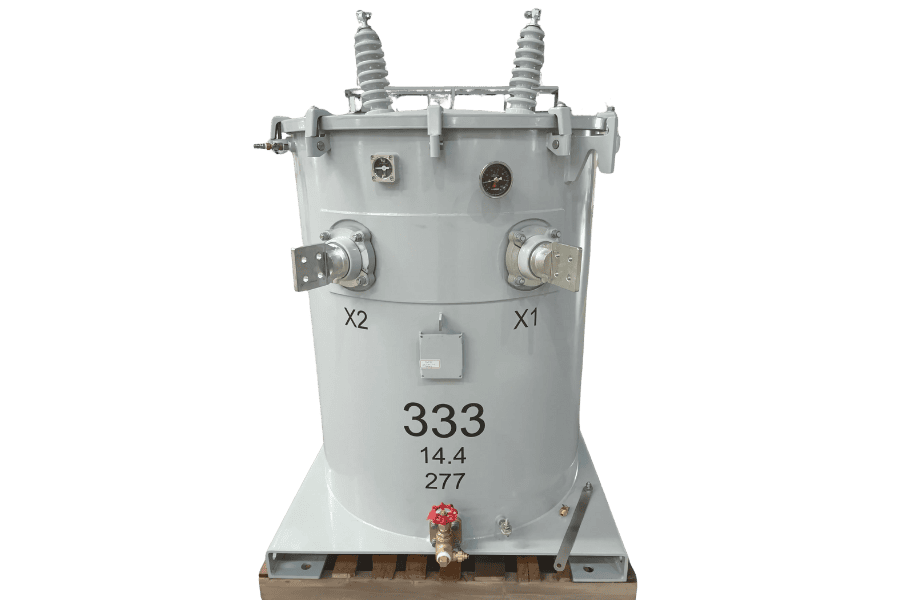

POLEMOUNT transformer

Liquid-filled ETAC Polemount Transformers available in single- or three-phase, configurable as a single three-phase unit or a bank of three single-phase units, with one- or two-bushing designs. Primary-side off-load tap changer for operating flexibility; 1,000 m altitude rating and ANSI Grey 70 finish.

Request a quote
  • Current Lead Time is Less Than 16 Weeks
  • 12 Months (Up to 3 Years) Warranty
  • Certifications

  • cULus (Listed for Canada and the U.S.)

Certification mark featuring 'cULus' with the 'UL' in a circle and 'LISTED' below, indicating the product is UL-certified for safety in both Canada and the United States.

Polemount Transformer Standard Specifications

Capacity Range: 10 KVA to 1000 KVA

Primary Voltage:  2400/4160 V to 19920/34500 V

Secondary Voltage:  120/240 V to 347/600 V

Phase: Single/Three-Phase

Freq: 60 HZ

Winding Material: Copper or Aluminum

Temp. Rise: 65°C

Insulating Liquid: Mineral Oil (ONAN)

Hanger brackets

ANSI 70 Gray paint color corrosion resistant paint finish

Built to:

  • C2.1/C2.2
75kVA Single Phase Overhead Distribution Transformer
Polemount Transformer Installation

Polemount Transformer Optional Features

  • Dual Voltages
  • Standard Taps
  • FR3 Oil (KNAN)
  • Full Set of Gauges and Valves
  • Stainless Steel Tank
