DEAD FRONT HV SUBSTATION TRANSFORMER

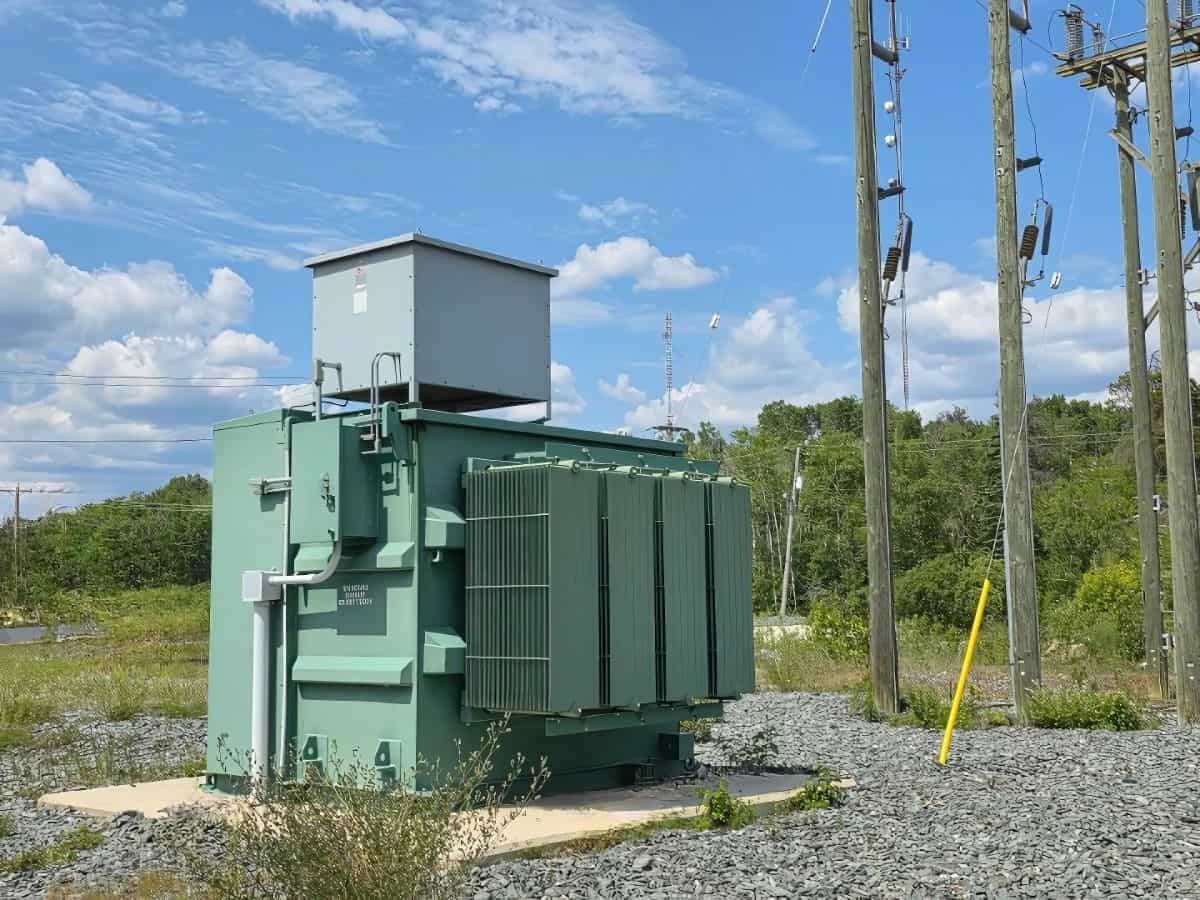

Dead Front HV Substation Transformer with NGR
Dead Front High Voltage Substation Transformer with NGR

ETAC’s Dead Front High Voltage Substation Transformer offers a modern solution for urban and industrial power infrastructure, eliminating substation fencing, improving visual aesthetics, and ensuring full compliance with CSA standards.

  • Current Lead Time is 22 – 30 Weeks
  • 12 Months (Up to 3 Years) Warranty
  • Certifications

Certified by CSA SPE-1000 for use in Canada

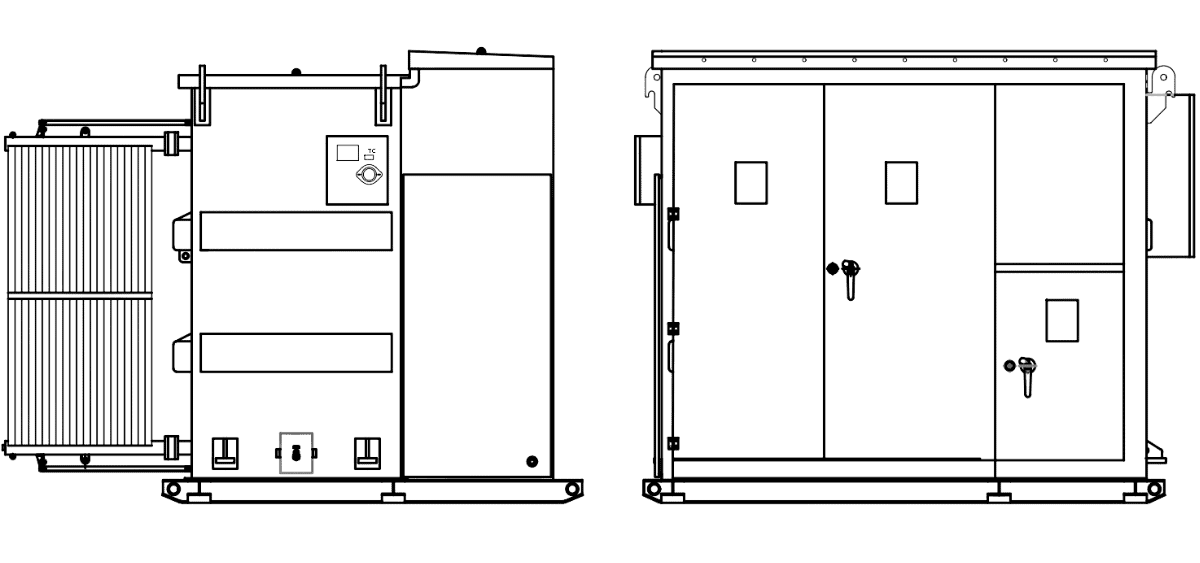

10MVA-Dead Front HV Substation-Transformer-Drawing
10MVA Dead Front High Voltage Substation Transformer Drawing

Discover our Dead Front High Voltage Substation Transformer. All configurations available.

 ETAC Product Range:

 3000 KVA up to 20 MVA.

 Primary Voltage: Δ or Y:

44kV, 66kV, 115kV, 138kV

Secondary Voltage: Δ or Y:

600V to 138kV

Optional Accessories:
  • NGR

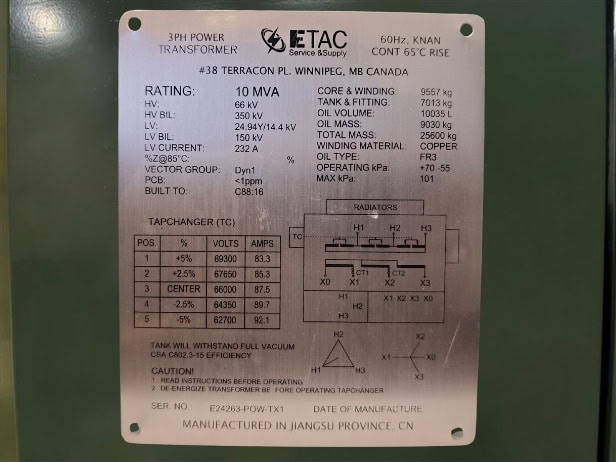

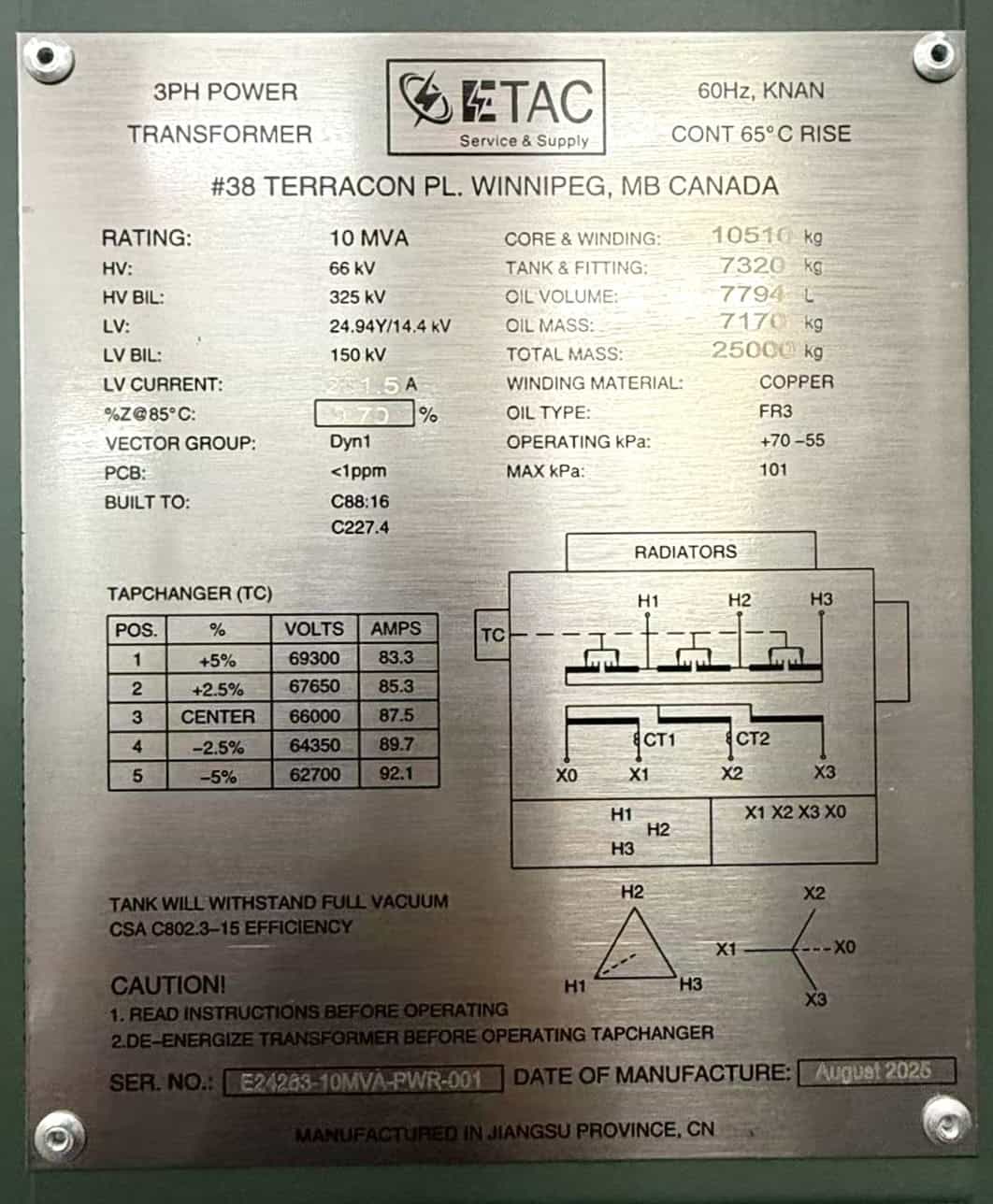

Dead Front HV Substation Transformer Nameplate
Dead Front High Voltage Substation Transformer Nameplate
Advantages:
  • Eliminates the need for substation fencing with a smaller physical footprint.

  • Significantly reduces construction costs and civil infrastructure requirements.

  • Uses underground cabling to eliminate exposed high-voltage connections.

  • Enhances aesthetic integration into the environment.
  • Tamper-proof pad-mounted enclosure
  • Customizable monitoring, alarm and control options

Built to:
