THREE-PHASE PAD MOUNTED TRANSFORMER

Padmount Transformers Padmount Transformers

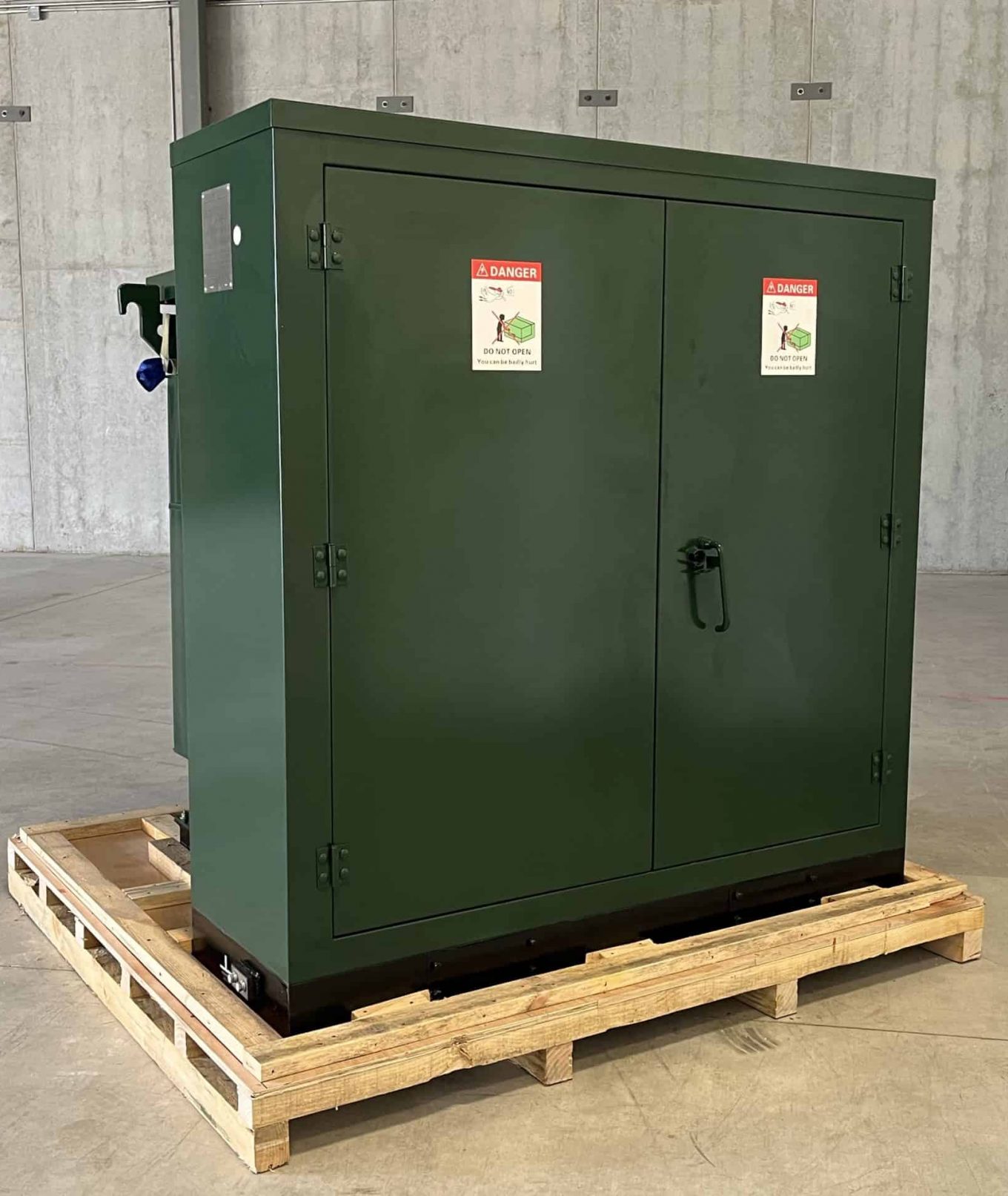

Padmount transformer viewed from the side
Pad mounted Transformer
Pad-mounted transformer open

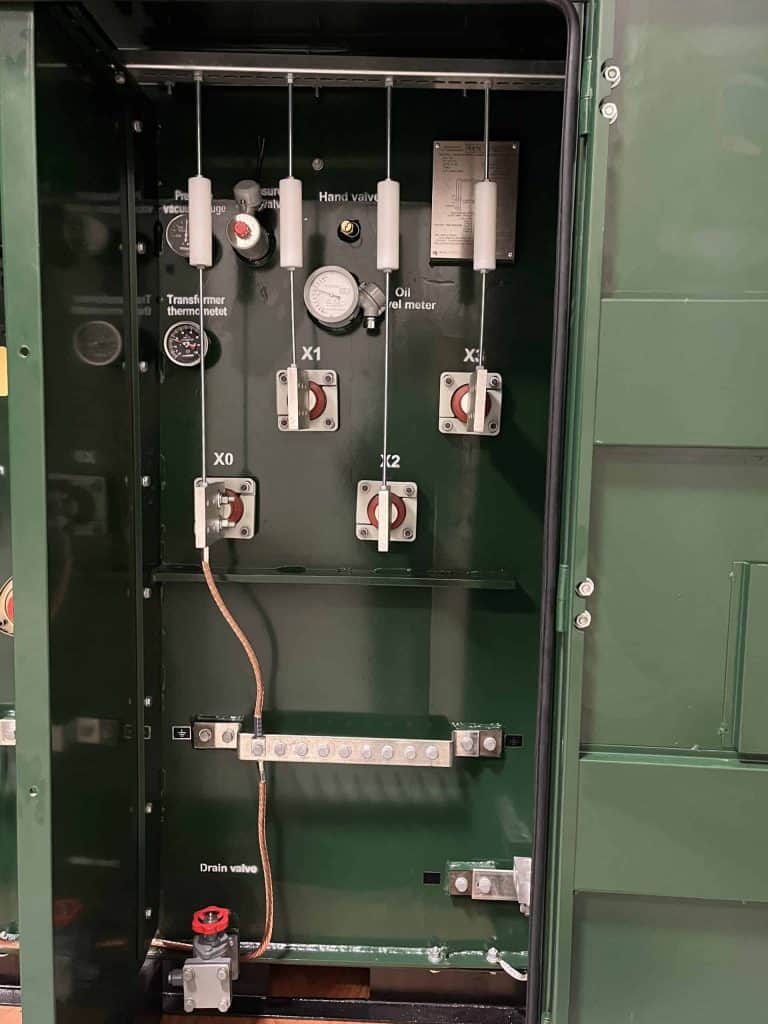

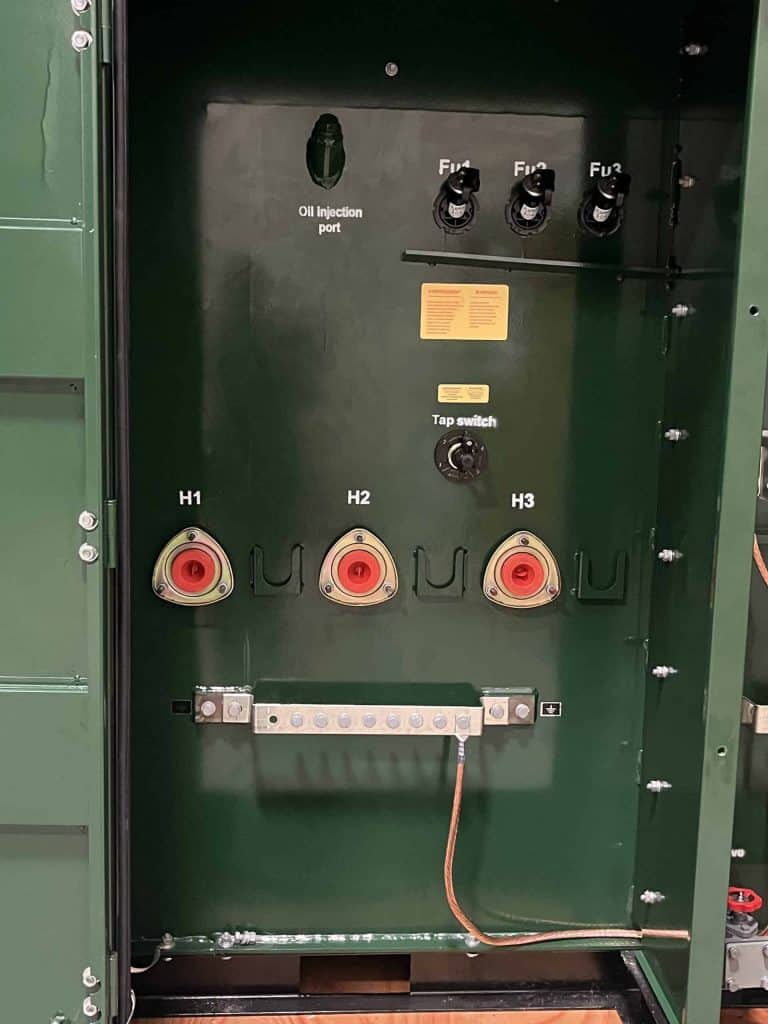

Pad mounted Transformer Primary and Secondary Compartments
ETAC Padmount transformer nameplate
Transformer Nameplate
  • Current Lead Time is Less Than 16 weeks
  • 3 Years Warranty
  • Certifications

UL Listed Canada and USA

Certification mark featuring 'cULus' with the 'UL' in a circle and 'LISTED' below, indicating the product is UL-certified for safety in both Canada and the United States.
ETAC cULus Certificate

Discover our custom-built pad mounted transformers, designed to meet your unique project requirements. With voltage ratings up to 34.5 kV, power ratings from 75 kVA to 5000 kVA, and various configurations and options.

Rated Power:

      75 kVA to 5000 kVA

Primary Voltage: Δ or Y

      4160V to 34.5kV

Secondary Voltage: Δ or Y

      208/120V to 24940/14400V

Built to:

  • CSA CSA C227.3, C227.4.
  • CSA C802.1-13 Efficiency Compliant


Pad mounted Transformers greater than 5000kVA are built to standard CSA C88 complete with tamper proof construction to IEEE C57.12.28
