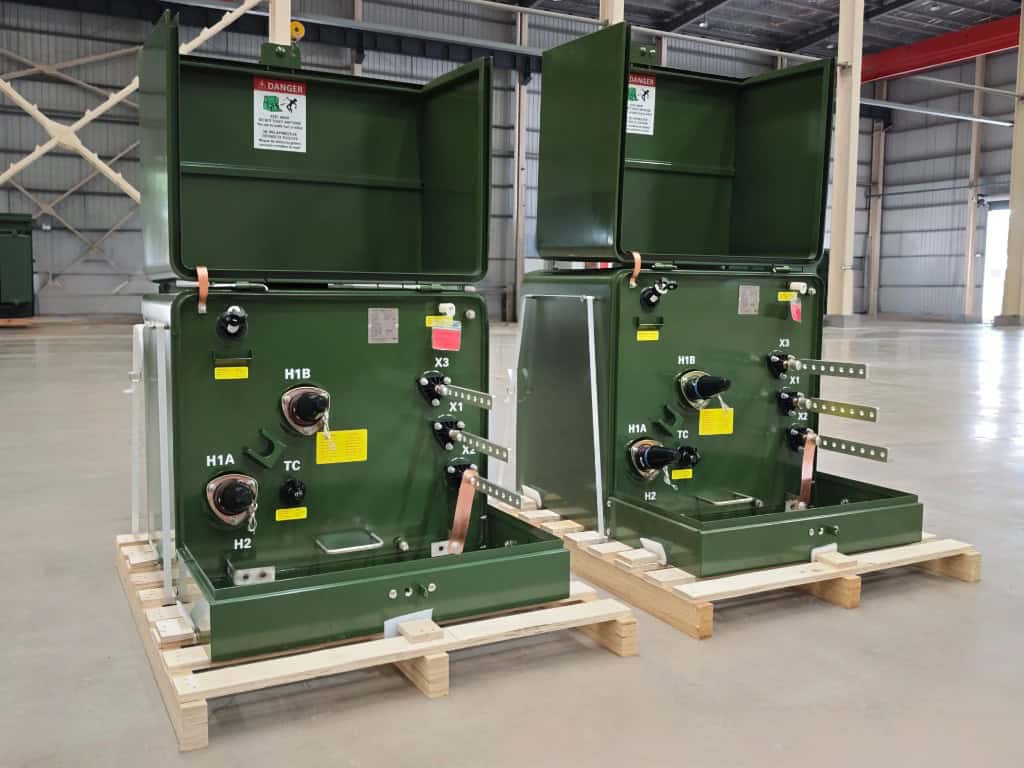

Single-Phase
Pad Mounted Transformer

With all key components in a compact enclosure, ETAC’s tamper-proof, liquid-filled, Single-Phase Pad Mounted Transformers offers outstanding features to meet the unique requirements of each project. Low in profile yet high in quality, these transformers are oil-insulated, self-cooled, and available in loop or radial feed configurations, with ratings from 25 kVA to 167 kVA for reliable power distribution.

Request a quote
  • Current Lead Time is Less than 16 Weeks
  • 12 Months (Up to 3 Years) Warranty
  • Certifications

  • cULus (Listed for Canada and the U.S.)

Certification mark featuring 'cULus' with the 'UL' in a circle and 'LISTED' below, indicating the product is UL-certified for safety in both Canada and the United States.

Single-Phase Standard Specifications

Capacity Range: 25 KVA to 167 KVA

Primary Voltage: Δ or Y 4160Y/2400 V to 27600/1600 V

Secondary Voltage: Δ or Y 120/240 V

Frequency: 60HZ

Insulating Liquid: Mineral Oil (ONAN)

Winding Material: Cooper or Aluminum

Temperature Rise: 65°C

Taps: +-2 x 2.5% DETC

Protection: Built-In Current-Limiting Fuses & Bay-O-Net Fuses

Finish: Seafoam Green (Munsell 4.82 G 4.07/3.35), or Equipment Green (Munsell 9GY1.5/2.6)

Padmount Transformers Padmount Transformers

Optional Specifications

  • Environmentally Friendly, High Fire-Point FR3 Oil (KNAN)
  • Dual Voltage
  • On-Off High Voltage Switch
  • Load  Break Switch

ETAC custom-built Single-Phase Pad Mounted Transformers are engineered to meet the unique requirements of every project. As a result, these guarantee long-term durability, safety, and performance in diverse environments.

Built to:
