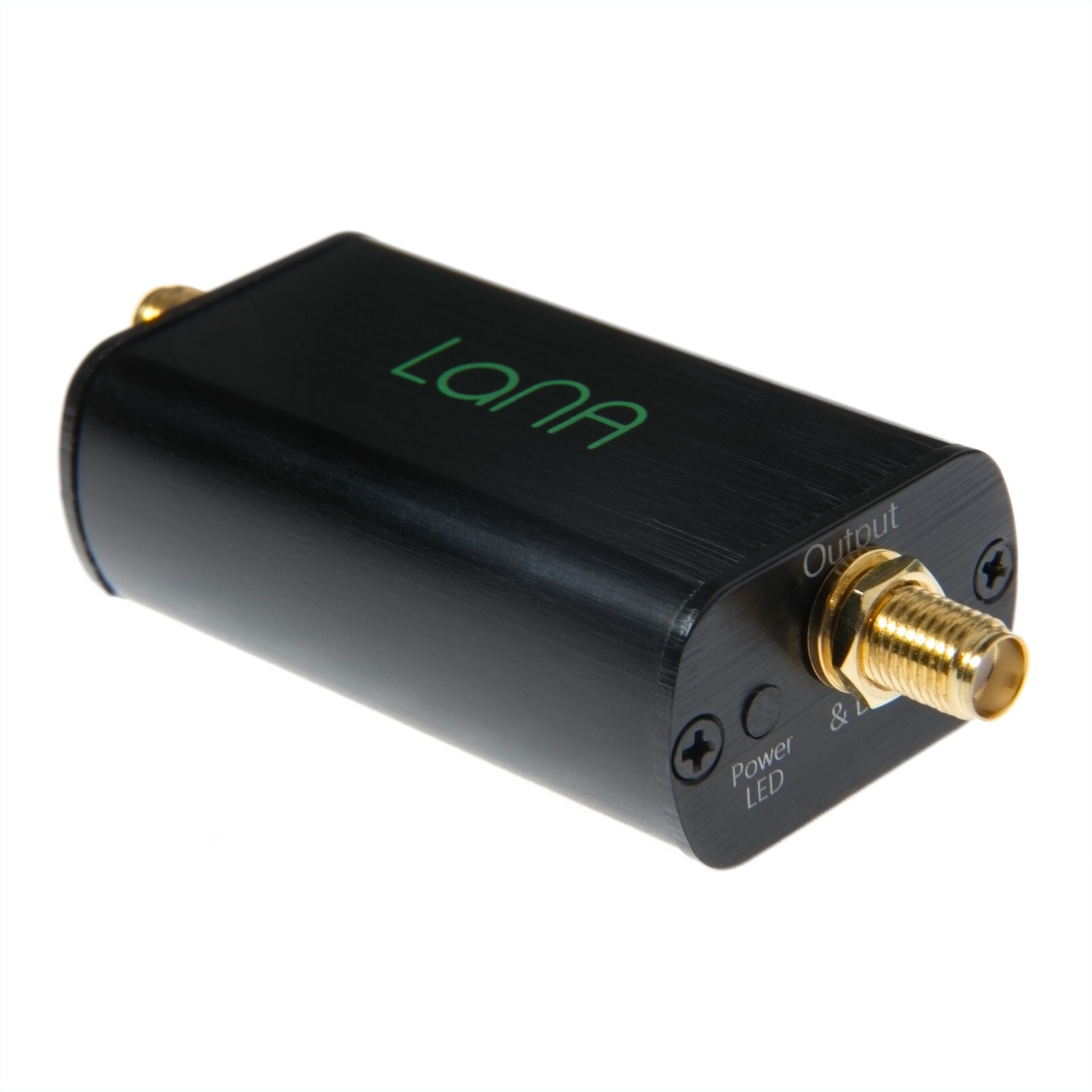

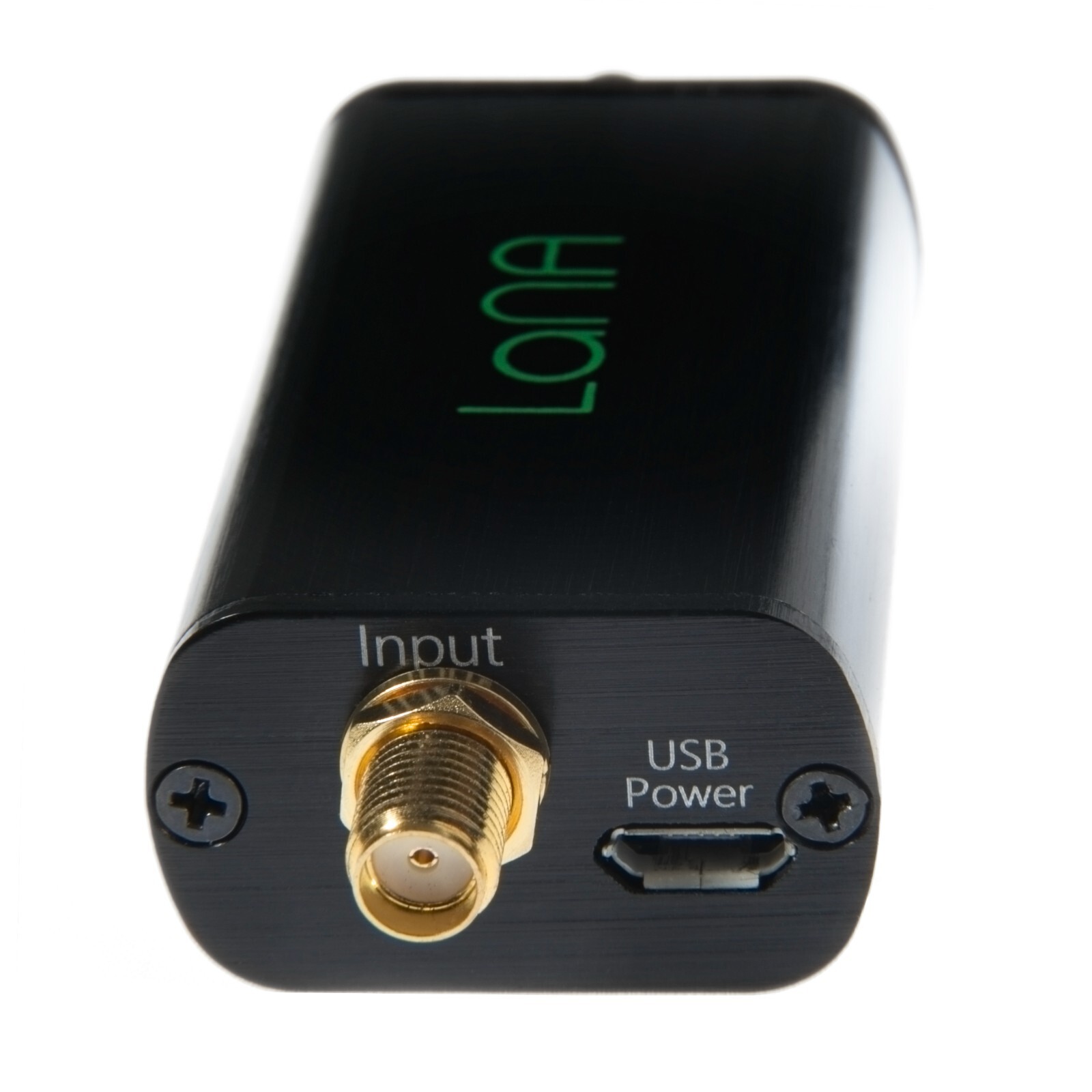

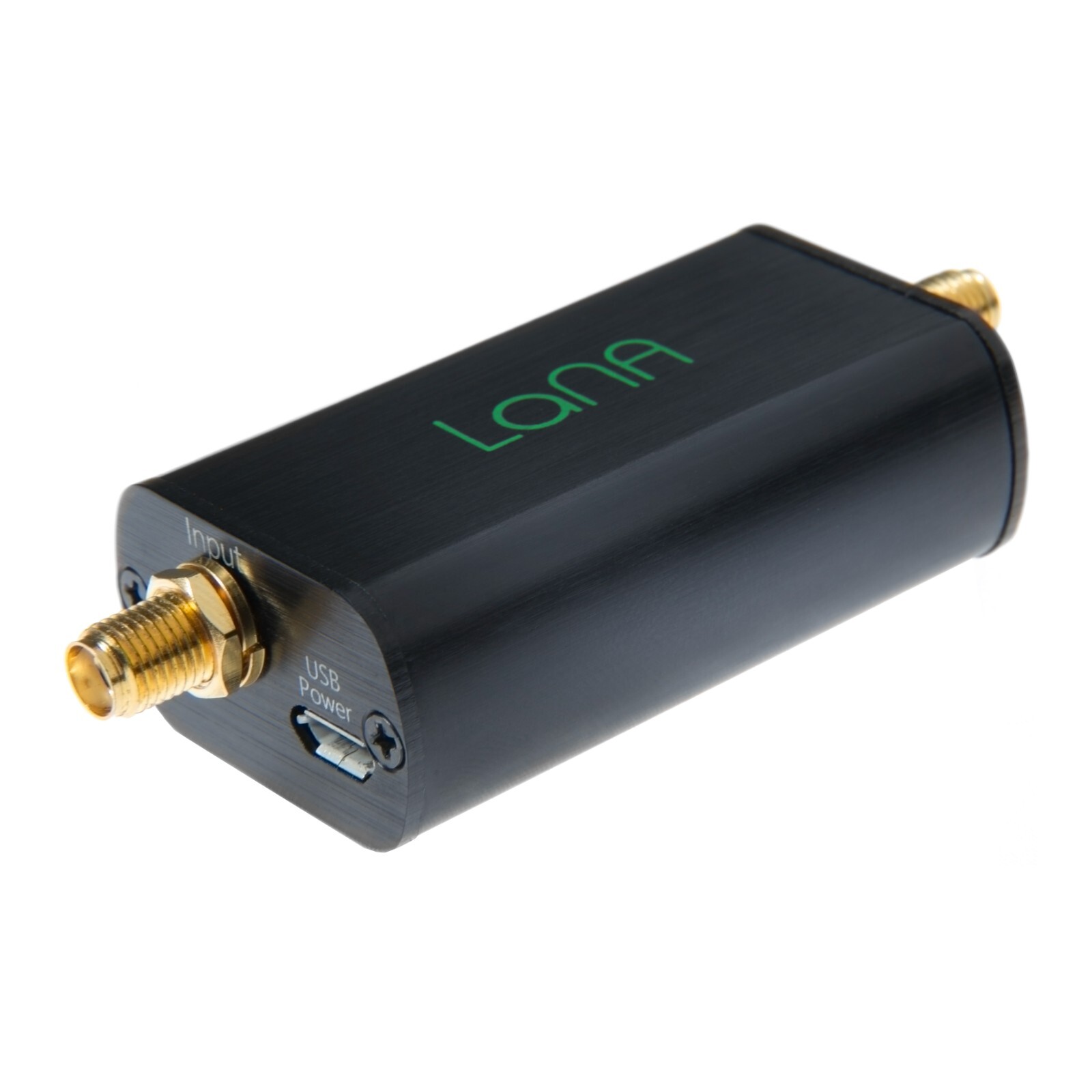

Nooelec LaNA – Wideband 20MHz-4GHz Ultra Low-Noise Amplifier (LNA) Module Retail
Specifications
| Return Shipping Will Be Paid By | Buyer |
| All Returns Accepted | Returns Accepted |
| Item Must Be Returned Within | 30 Days |
| Model | LaNA |
| Type | Wideband Amplifier |
| Color | Black |
| MPN | 100812 |
| ASIN | B07XNLJ9X2 |
| Brand | Nooelec |
LaNA is a very high performance, wideband LNA module designed for general purpose SDR applications. Each module allows for 3 different power options, but you should only power with one option at any given time! The recommended power input through the SMA output port (for bias-tee capable SDRs like the NESDR SMArTee XTR) is 3V-5V DC. Alternatively, if you don't have a bias-tee capable SDR, you can use the external power options--the microUSB port, or DC barrel connector via the included DC to microUSB adapter. The recommended external power input is 3.3V-5.5V DC. Current consumption is dependent on the input voltage and ranges from ~50-80mA. Though there is protection circuitry on LaNA for overvoltage conditions--and voltages of up to 12V DC should still work and will not damage the device--it is not recommended for long-term usage. Kindly note that damage resulting from overvoltage conditions would not be covered under the standard 2 year warranty. Each LaNA module has an internal EMI shield to protect the sensitive circuitry from external interference and is fully ESD-protected.
