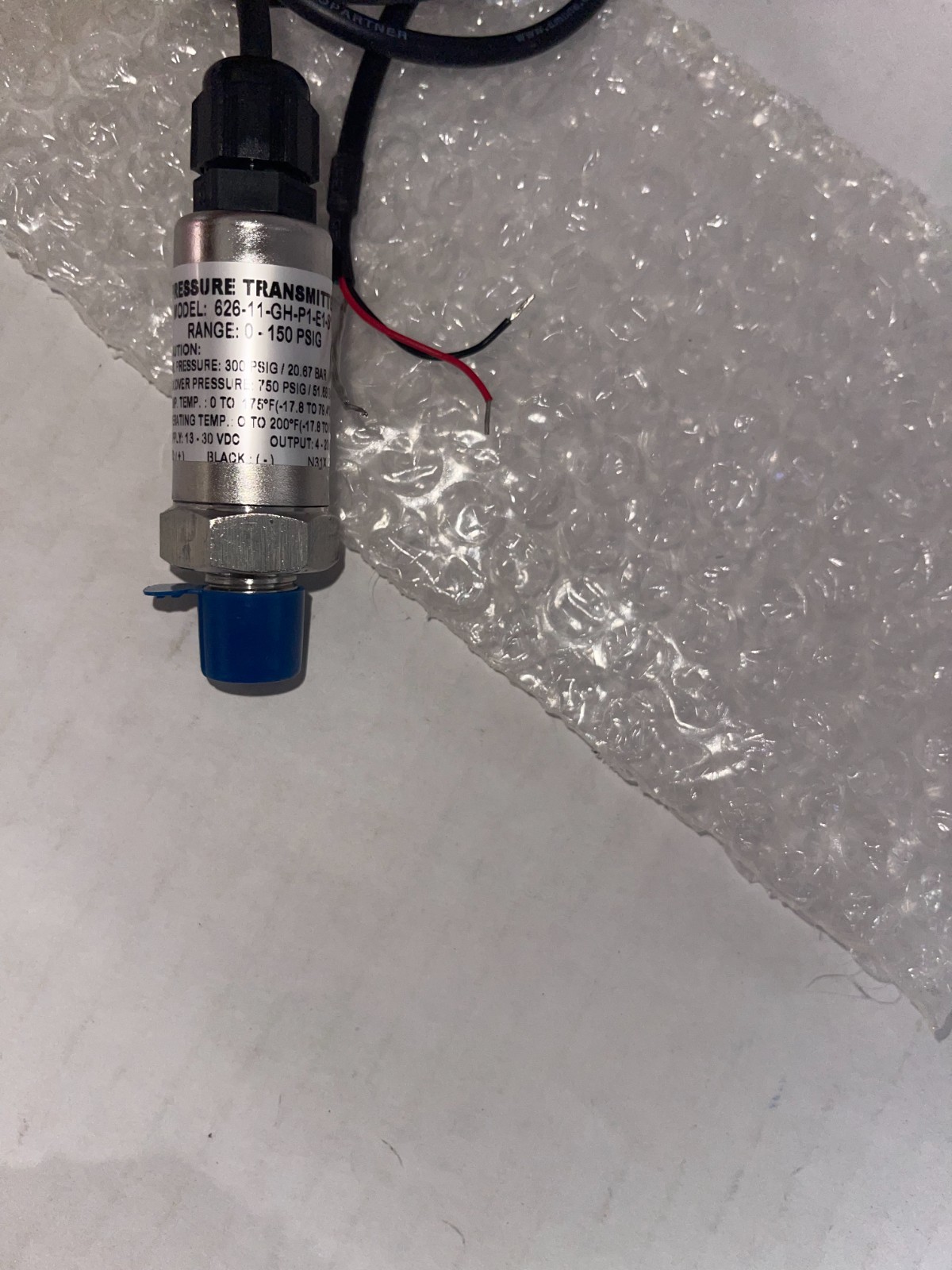

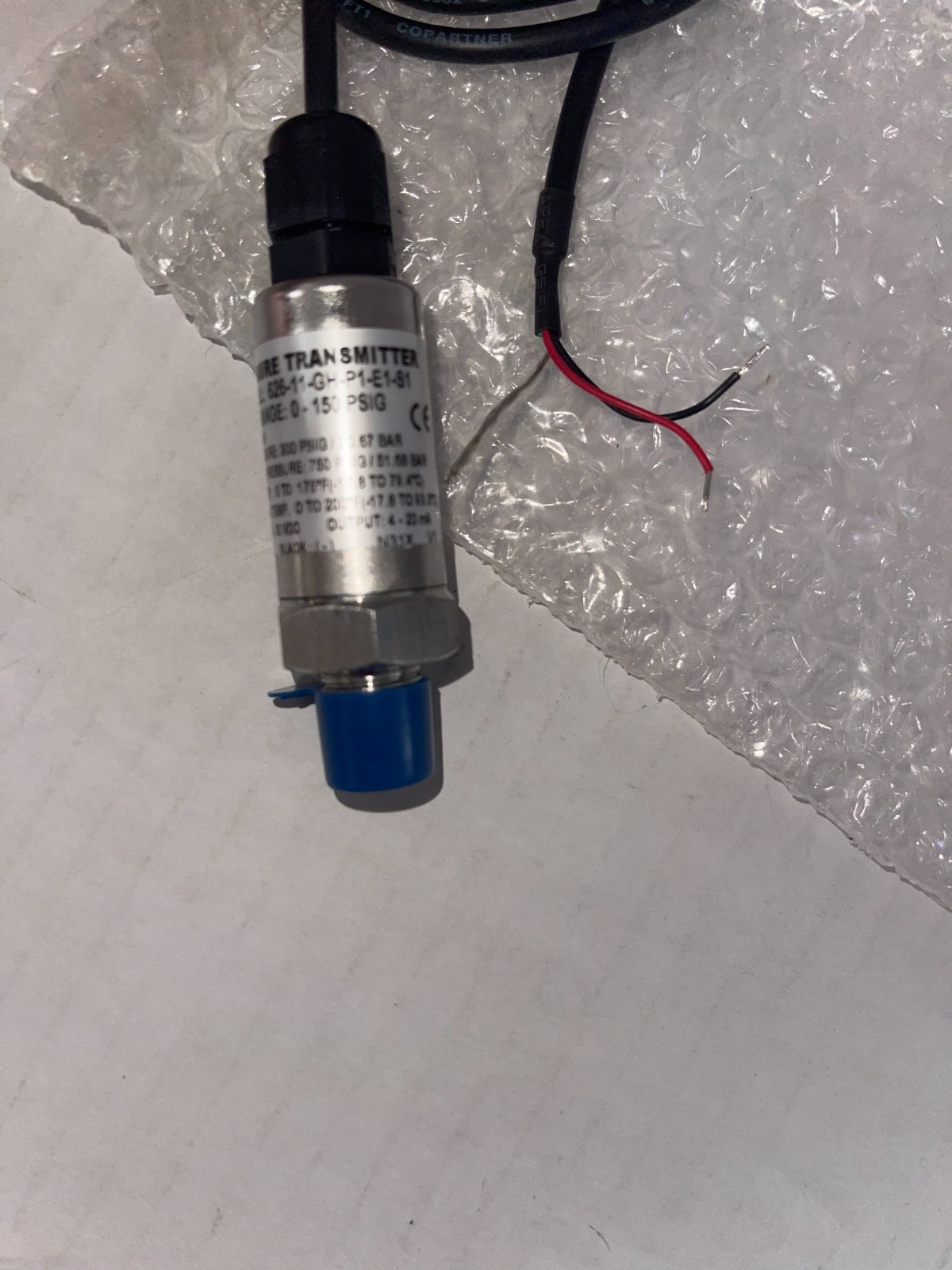

Dwyer Instruments 626-11-Gh-P1-E1-S1 Pressure Transmitter, 0-150Psi, 36In Lead

USD 220.00 USD

SKU: XwjWGdH1

Brand: DWYER INSTRUMENTS

MPN: 626-11-GH-P1-E1-S1

GTIN: 00094704422015

Condition: New

Tags: +/-0.25% Full Scale 0 to 1300 Ohms 0 to 150 psi 0 to 200 F 0.4000 00094704422015 1 Year 1/4" MNPT 13 to 30 VDC 300 316 SS and 316L SS 36 in 4 To 20 mA DC 4.400 6.700 626-11-GH-P1-E1-S1 DWYER INSTRUMENTS Instructions Liquids and Gas Pressure Transmitter Stainless Steel

Categories: Signal Sources & Conditioning

Specifications

Brand	DWYER INSTRUMENTS
MPN	626-11-GH-P1-E1-S1
Style	Pressure Transmitter
Item	Pressure Transmitter
Type	Pressure Transmitter
Includes	Instructions
Weight	0.4000
Length	6.700
Width	4.400
Depth	4.400
Max. Pressure (PSI)	300
Accuracy	+/-0.25% Full Scale
Housing	Stainless Steel
Operating Temp.	0 to 200 F
Manufacturers Warranty Length	1 Year
Range	0 to 150 psi
Wetted Materials	316 SS and 316L SS
Power Required	13 to 30 VDC
Output	4 To 20 mA DC
Process Connection	1/4" MNPT
Compatible With	Liquids and Gas
Loop Resistance	0 to 1300 Ohms
UPC	00094704422015

Dwyer Instruments 626-11-Gh-P1-E1-S1 Pressure Transmitter, 0-150Psi, 36In Lead
